ALFA LAVAL MMB 304-MMB 305

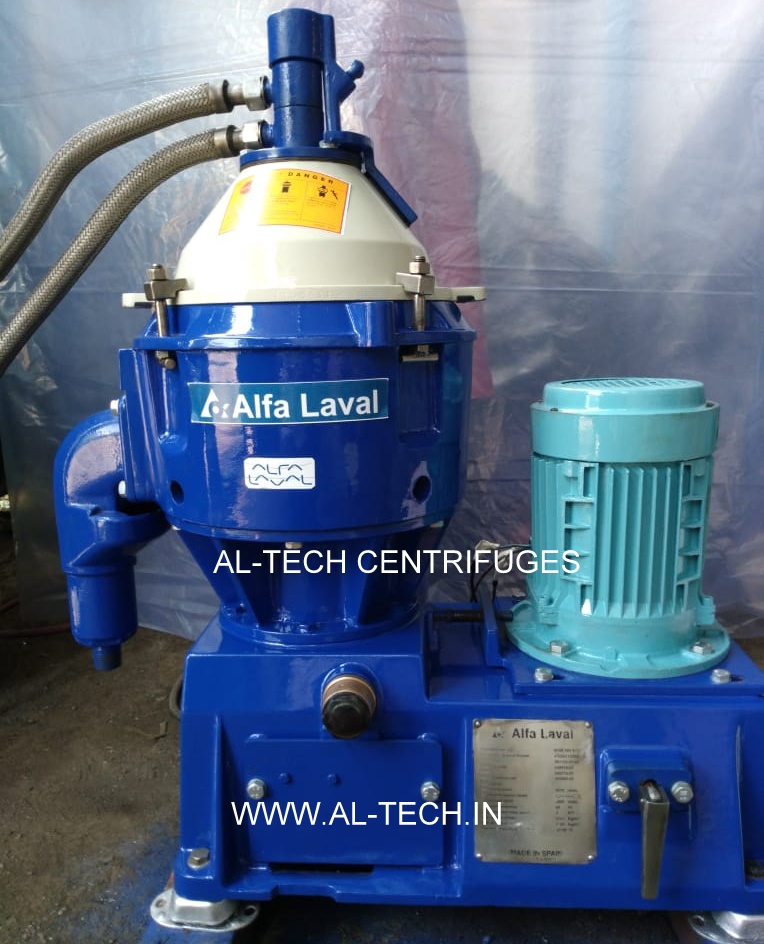

AL-TECH CENTRIFUGES offers you Centrifuge, Alfa Laval separator, Model number MMB-304-S-11, stainless steel contacts, 3-way separator, bowl rated for 9510 RPM. Complete with 2.2 kW motor


Machine Application

The MMB 304 high speed disc stack centrifuge is designed for purification or clarification of fuel oils, engine oils, lubricating oils, and various mineral oils used on board marine installations and in industrial applications.

Separator Design

The MMB 304 consists of four frame parts, the lowers, intermediate top, and hood. The separator is driven by an electric motor, friction coupling, flat belt and verticle drive shaft. The motor drives the friction coupling which drives the flat belt, ensuring a gradual start, preventing overload.

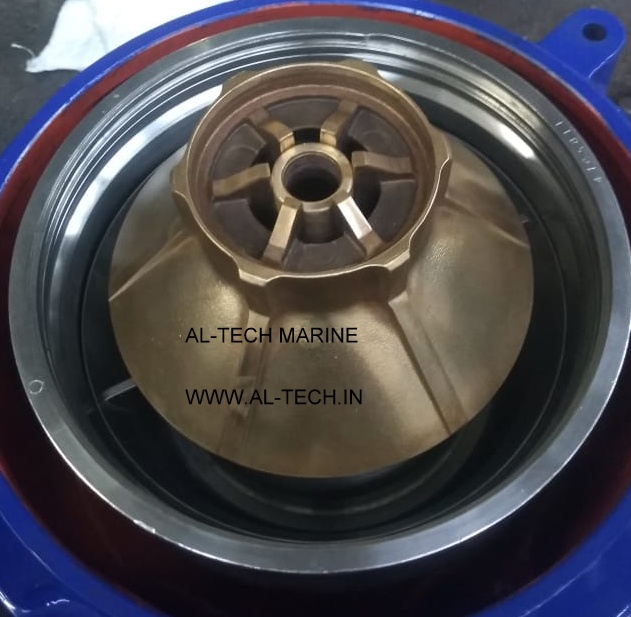

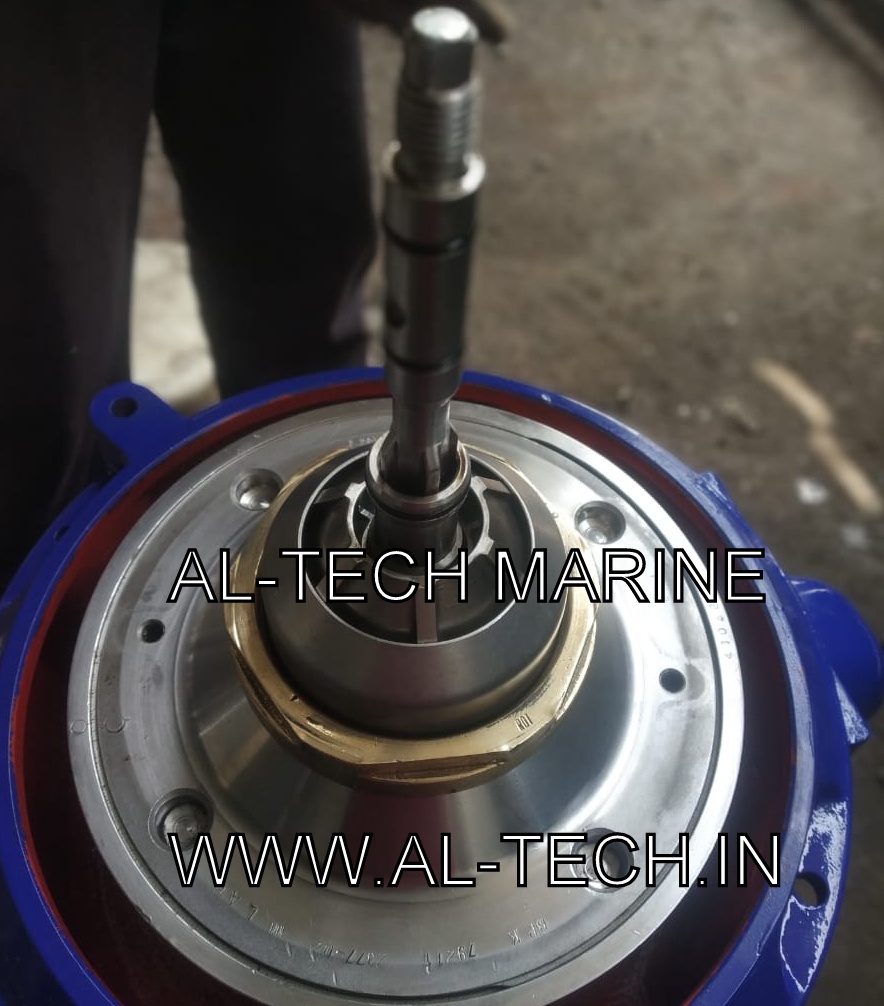

The bowl is fixed onto the vertical drive shaft situated in the top part of the frame. The frame hood is hinged to enable easy access when cleaning or carrying out maintenance.

Standard Equipment

MMB 304-MMB305 centrifugal separator
Motor - 440 volt, 60 Hz, 3-phase
Complete set of gravity disks
Complete set of tools
Set of spare parts for extended use
Set of instruction manuals

Optional Equipment

Motor - 380 volt, 50Hz, 3-phase
Motor - Dual 208-230/440 volt, 60Hz, 3-phase
MAWA Water seal alarm
Electric pre-heater
Control Panel
Starter
Skid
Oil feed pump
Separator Throughputs and Capacities

The MMB 304 is suitable for the separation of marine diesel, biodiesel, distillate, lubricating and hydraulic oils. (Throughputs may vary depending on temperature and viscosity of liquids)


Expected Throughput:

Marine diesel oil: 555g/h | 2,100l/h
Biodiesel: 555g/h | 2,100l/h
Lubricating oil: 264g/h | 1,000l/h
Distillate: 660g/h | 2,500l/h
Hydraulic oil: 555g/h | 2,100l/h

Features:
Compact, robust design.
Large sludge space with removable sludge basket.
Belt driven machine reduces moving parts and consumable parts.
