IMO E4 PUMP

IMO E4 052M1LEBE SREW PUMP : AL-TECH CENTRIFUGES/AL-TECH MARINE

IMO E4 PUMP SERIES

IMO PUMPS

IMO THREE SCREW PUMPS

IMO HIGH/MEDIUM PRESSURE PUMPS

#IMO #IMOTHREESCREWPUMPS #IMOE4 #IMOPUMPS#HIGHORMEDIUMPRESSUREPUMPS

AL-TECH CENTRIFUGES are Suppliers and Exporters of All Kind of IMO PUMPS AND ITS SERVICE KIT.

IMO E4 052N1LEBE

E4 PUMPS:Handling of hydraulic oils, seal oils, light oils and fireresistant hydraulic fluids

Performance: 10-850L/min. Max 100 Bar.

Positive constant displacement, rotary, three screw pump. Flow rate per revolution 9.8 – 425 cm3 in 14 steps. The three screws, the central driven screw – the power rotor – which meshes with the two sealing screws – the idler rotors – the only rotating components of the pump, are hydrodynamically journalled in the pump housing. The axial pressure and friction loads on the pump rotors are hydraulically balanced. The power rotor is positioned axially by a ballbearing which operates at principally no axial load due to the hydraulic balancing of the rotor axial forces.

Max discharge pressure: 100 bar

Capacity: 0‚6 - 51 m3/h

Viscosity: 12 - 400 cSt

Fluid temperature: max 90°C

MODEL CODE : E4

TYPE :

E4 025

E4 032

E4 038

E4 045

E4 052

E4 060

E4 070

FOR SALE

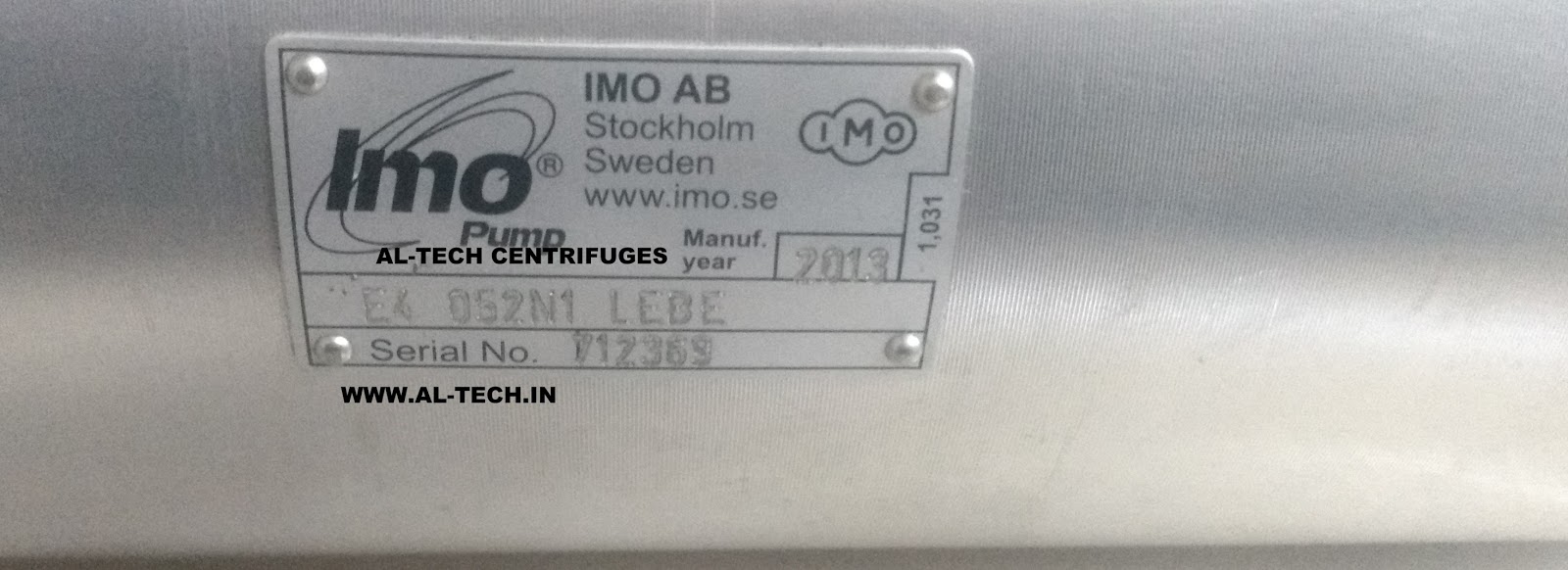

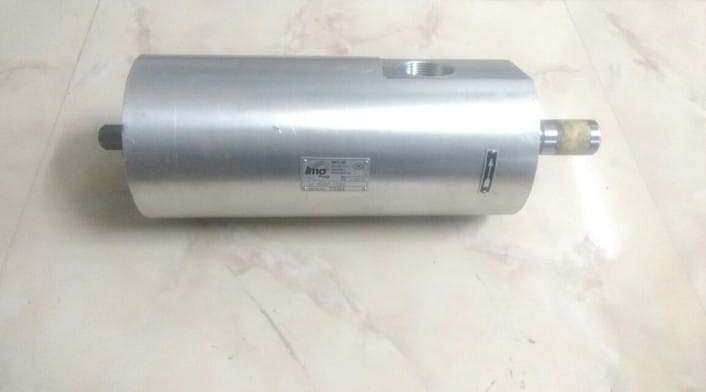

IMO E4 052N1LEBE

MFG YEAR : 2013
