IOP MARINE OBEL-P HPU 1500,HPU 1500-2

HYDRAULIC POWER UNITS SERIES

HPU 1500 HYDRAULIC POWER UNITS

CHRIS MARINE

IOP MARINE OBEL-P HPU 1500

IOP MARINE OBEL-P HPU 1500-2

#chrismarine #iopmarine #hpu1500 #iopmarinehpu1500

AL-TECH MARINE are suppliers and exporters of all kind of HYDRAULIC POWER UNITS SERIES/HPU.

The HPU 1500 is a traditional power supply for hydraulic tools. The unit can be powered by both air or by hand and delivers a maximum hydraulic pressure of 1500 bar. Suitable for 2- and 4-stroke engines.

Pneumatic-hydraulic power supply for hydraulic tools.

For operation of engine hydraulic tool series, i.e. hydraulic jacks.

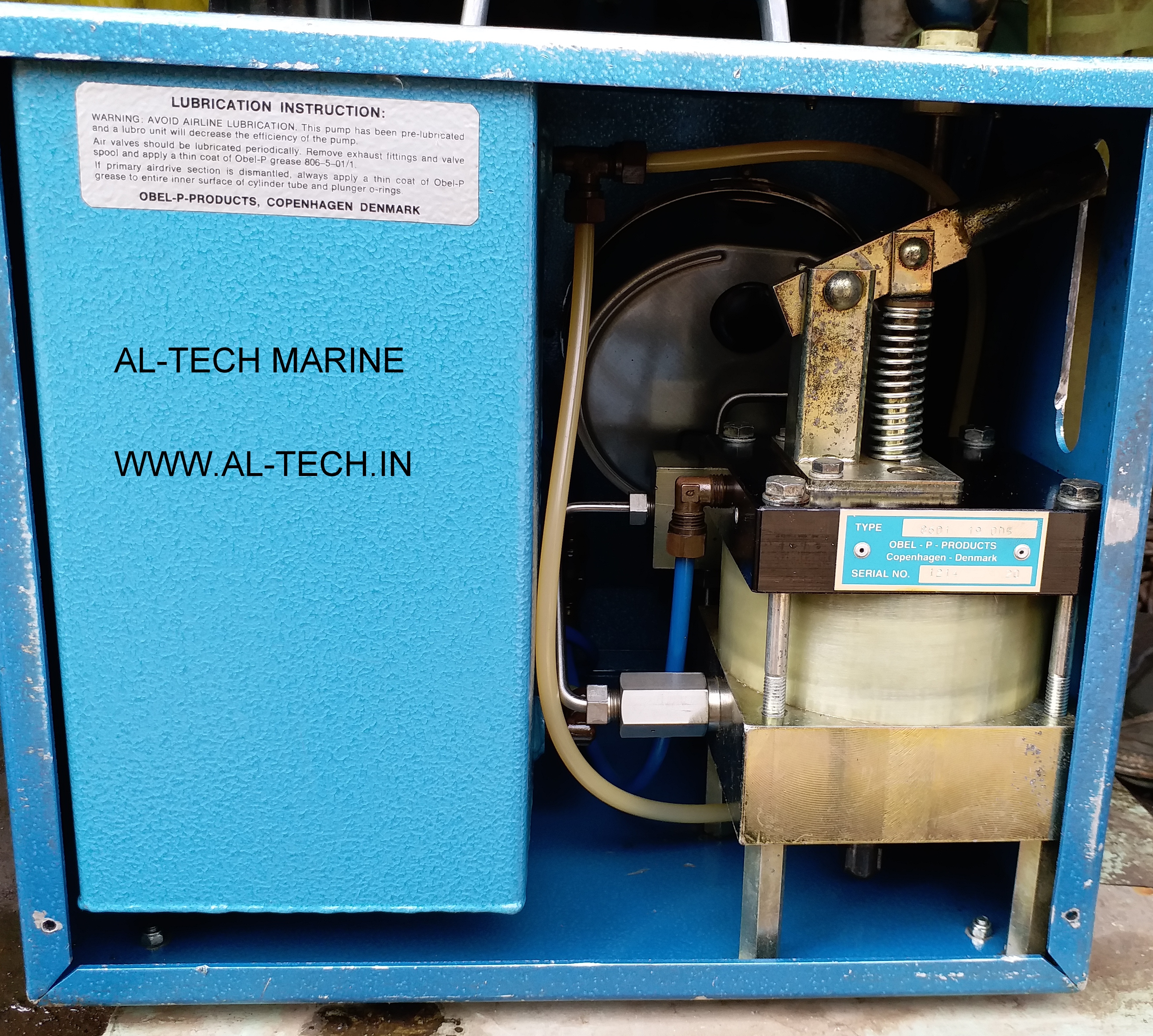

Internal pump(s), high-pressure pipes, connections, gauges etc are of top technical quality to ensure reliability and efficiency.

A series of power units covering most needs for most engines.

Smaller units can also be powered by hand.

Can also be adapted for special applications like opening SKF couplings, opening/separating turbo chargers etc.

Twin-pump models drastically reduce pumping time with about 80% of normal time, typical pumping time for a cylinder cover will be 2-6 minutes depending on engine size.

HPUs are reliable portable pneumatic / hydraulic power supplies for use in workshops, on ships, in factories and at power plants. With an IOP Marine unit you get state-of-the-art performance.

Hydraulic pressure up to 3,500bar @ 7bar air inlet pressure

Flow rates up to 1.9l/min

Adjustable maximum outlet pressure for tool protection

Back-up hand power optional

Apart from operation of standard tools, the largest power packs can also be used for floating of camshafts and opening of SKF couplings.

Technical specification

Product Max. output pressure (bar) Max. output flow (l/min) Weight (kg) Drive medium Pump technology Low-pressure mode

MPU 1500 1500 Variable 6 / 8 Hand 2-step

MPU 2400 2500 Variable 8 Hand 2-step

HPU 1500 Compact 1500 0,25 8 Air Single

HPU 1500 1500 0,33 16 Air/Hand Single

HPU 1500.2 1500 0,55 20 Air/Hand Single

HPU 2250 2250 0,45 20 Air Single

HPU 2250-2 2250 1,85 28 Air Twin

HPU 2250-2S 2250 1,85 28 Air Twin

HPU 2250S 2250 0,45 23 Air Single

HPU 2800-2 2800 1,7 28 Air Twin

HPU 3500 W 3500 Air Twin

HPU 3500-2 3500 1,6 28 Air Twin

Technical specification

Can be powered by hand : Yes

Multipurpose (incl fuel injector tests) : No

Twin pumps : No

Pneumatic inlet pressure (bar) 0-10

Hydraulic pressure (bar) output@input 1500@7, 1000@4.6

Standard safety valve setting (bar) 1050/1350* *adjustable

Hydraulic flow (l/min) Less than 0.3

Air consumption (l/min) @ 0 bar 300-1050

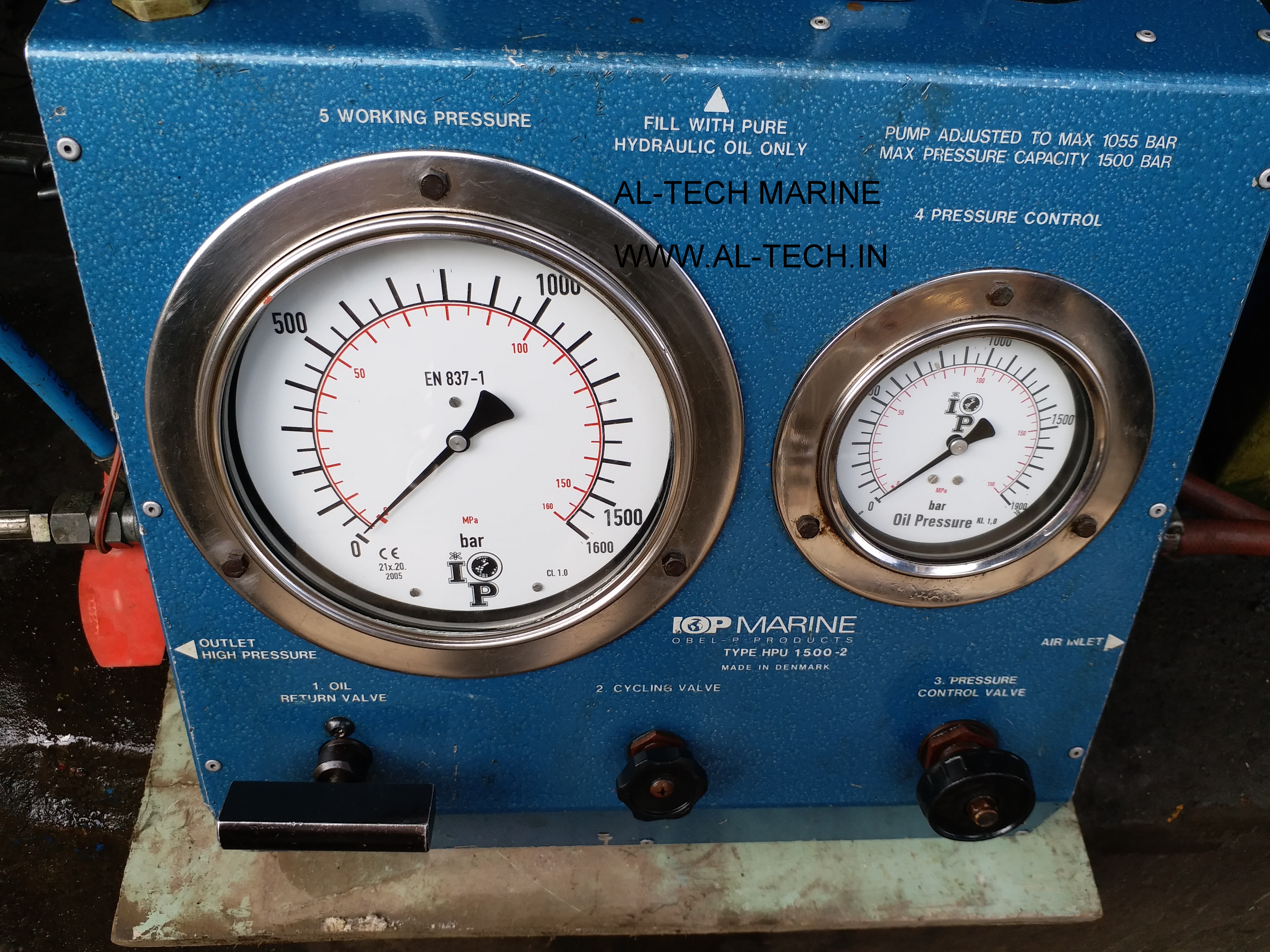

Hydraulic gauge (bar/160 MPa, class 1.0, 160) 1600

Pneumatic inlet 1/2 BSP female (ISO-228-1-G-1/2) adapter for reduction to 1/4 BSP included

Hydraulic outlet CEJN 116 male incl

Weight 16 kg

Dimension (LxWxH mm) 340x256x380

Typical engine/tool (smallest HPU) : MAN 60 MC WrtsilRND MAN gensets Wartsila 4 stroke engines Rolls-Royce Bergen Mitsubishi UEC Himsen
