TAIYO AVR EXU-61A
TAIYO AVR EXU-61A
TAIYO AVR EXU-6A

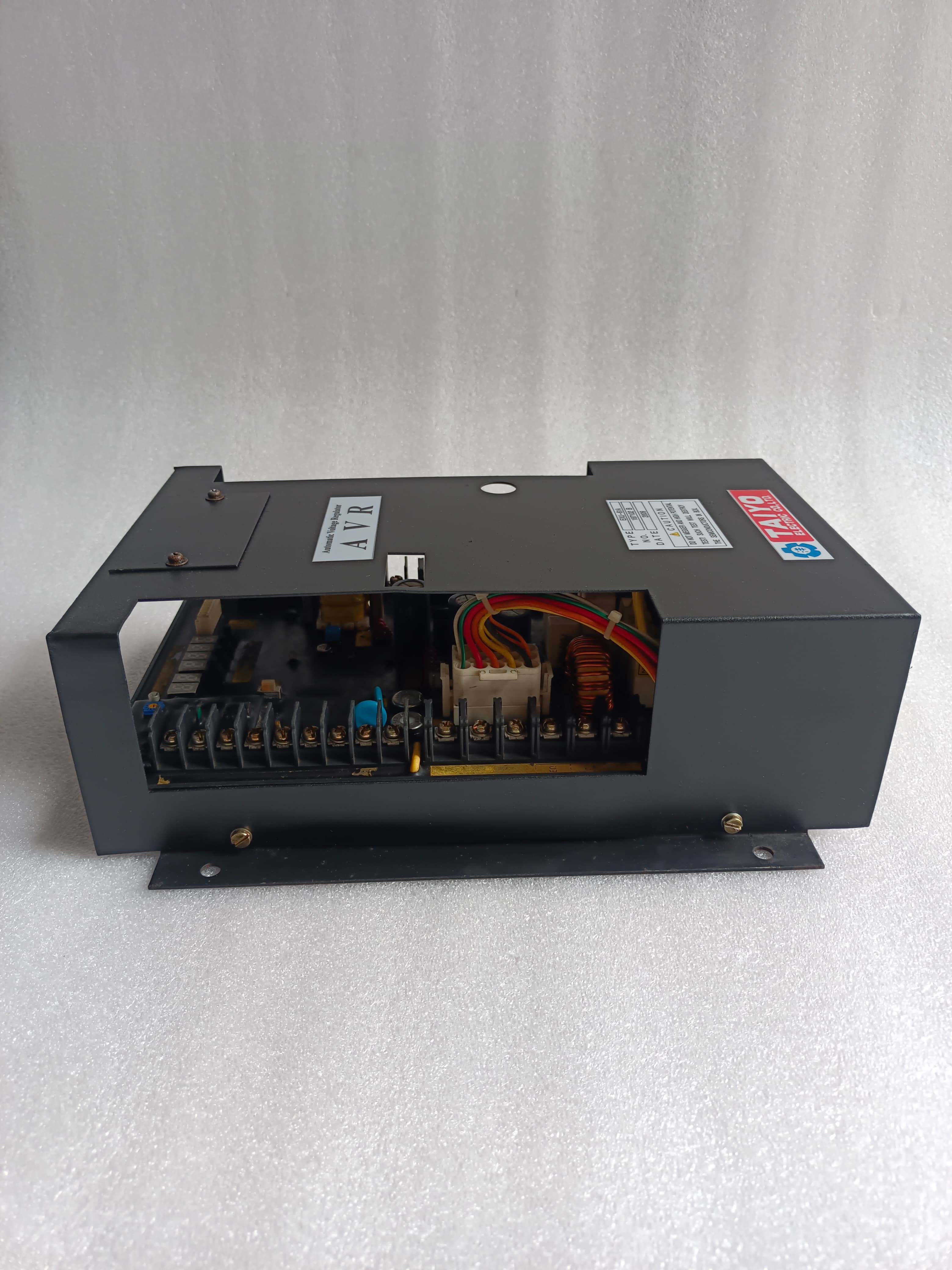

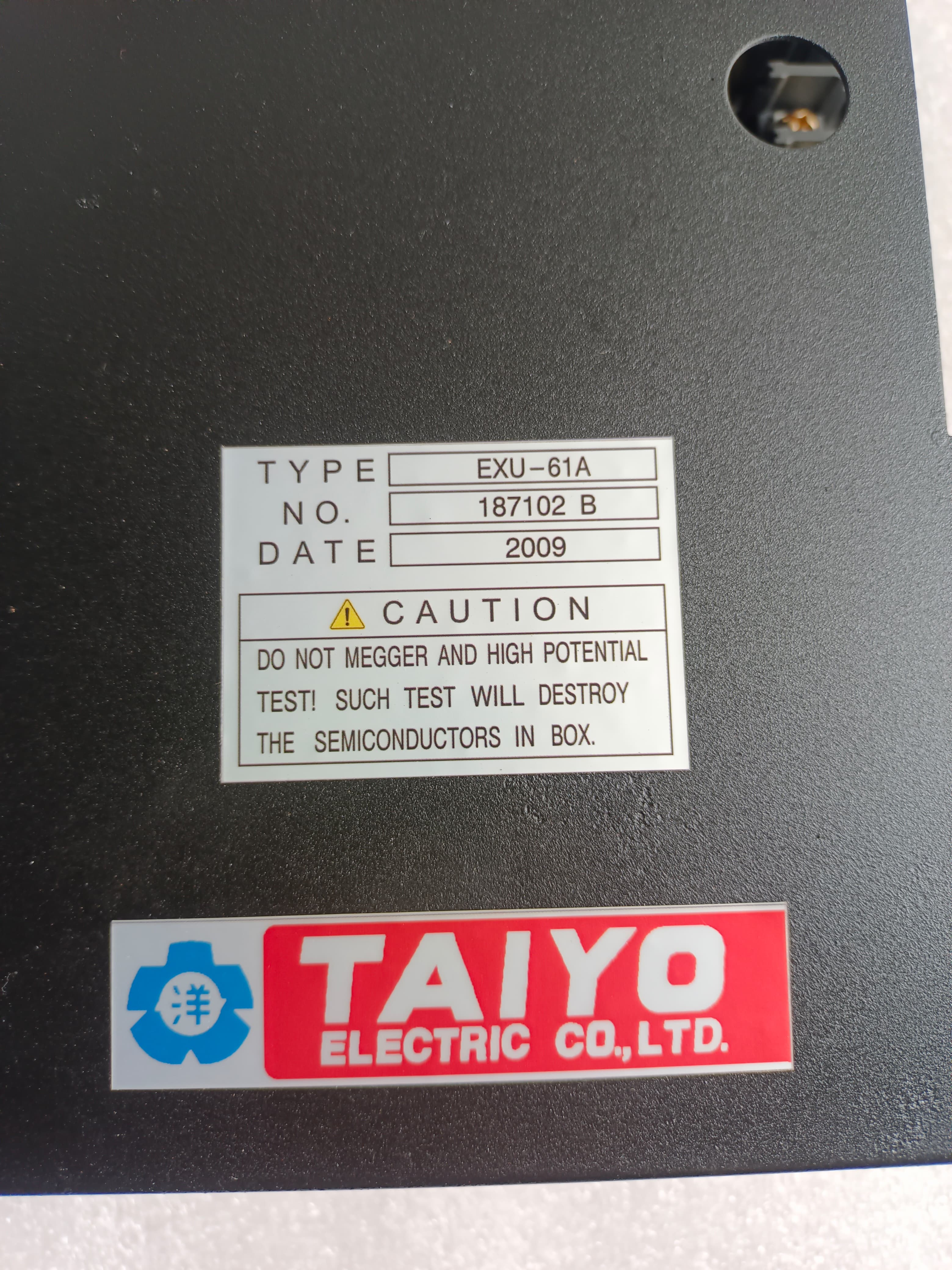

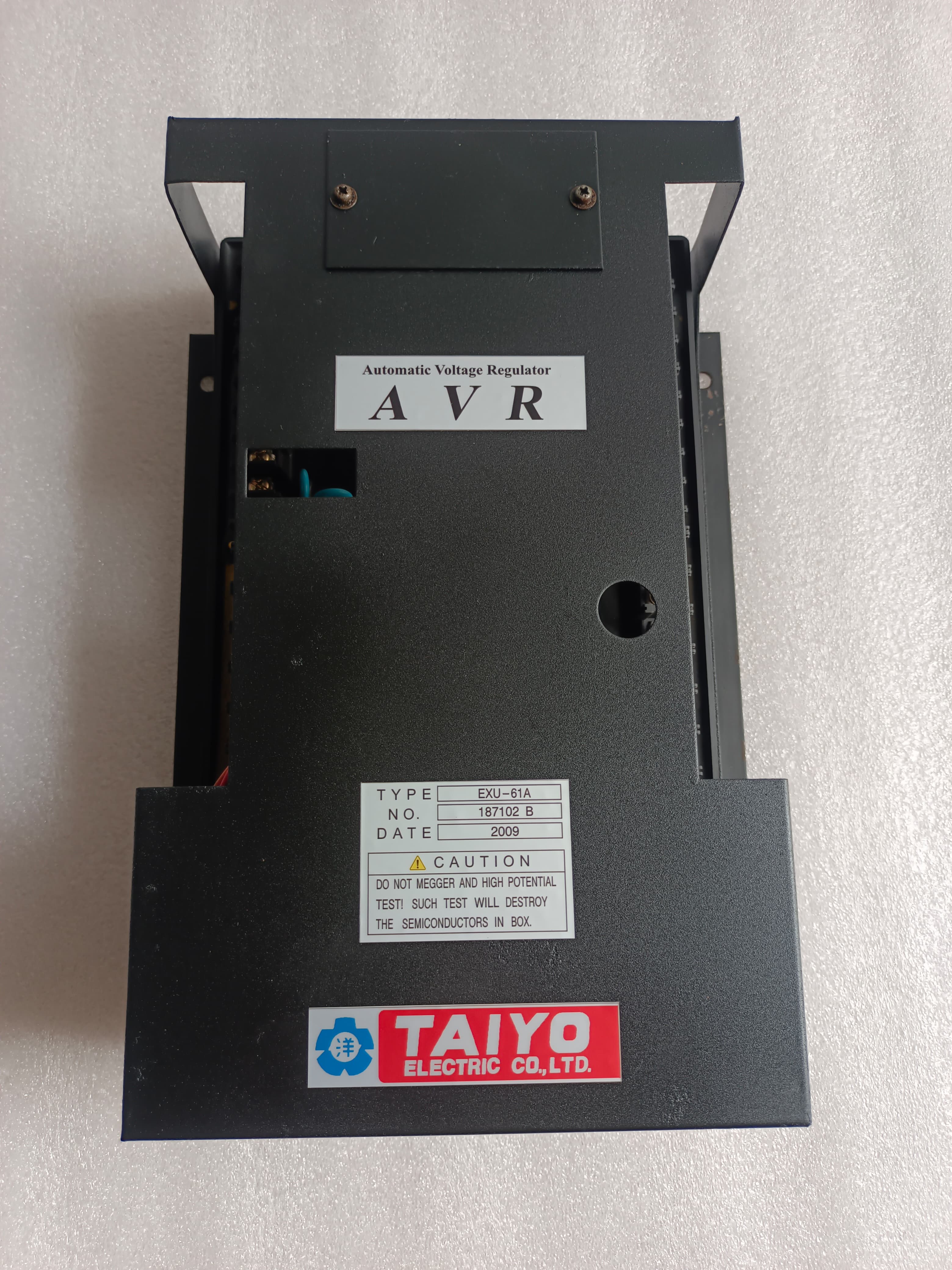

The automatic voltage regulator Taiyo EXU-61a & EXU-6a is a microprocessor automatic voltage regulator which is designed for brushless generator use.
Various data settings are possible by VR (variable resistor) and setting value indicator (7 segment LEDs and push buttons switches).
The AVR has the following inputs & output terminals
Generator voltage input E0, E1, E2, E3, E4 :
Generator voltage input k , l
Variable resistor 6, 7
Parallel operation input k2 , L2
Excitation output A ,B
TAIYO AVR - EXU 61A
TAIYO EXU-61A AUTOMATIC VOLTAGE REGULATOR
